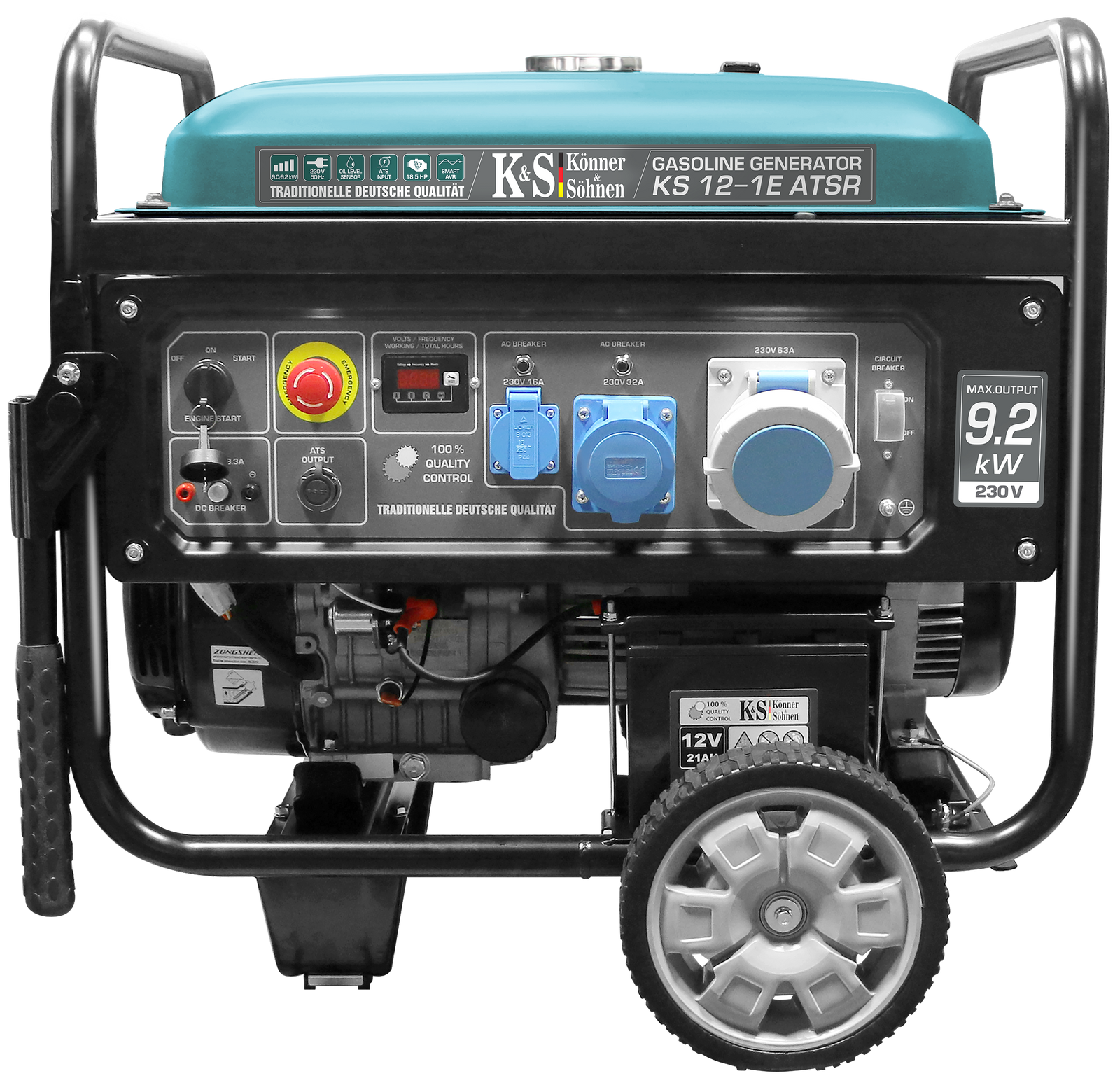

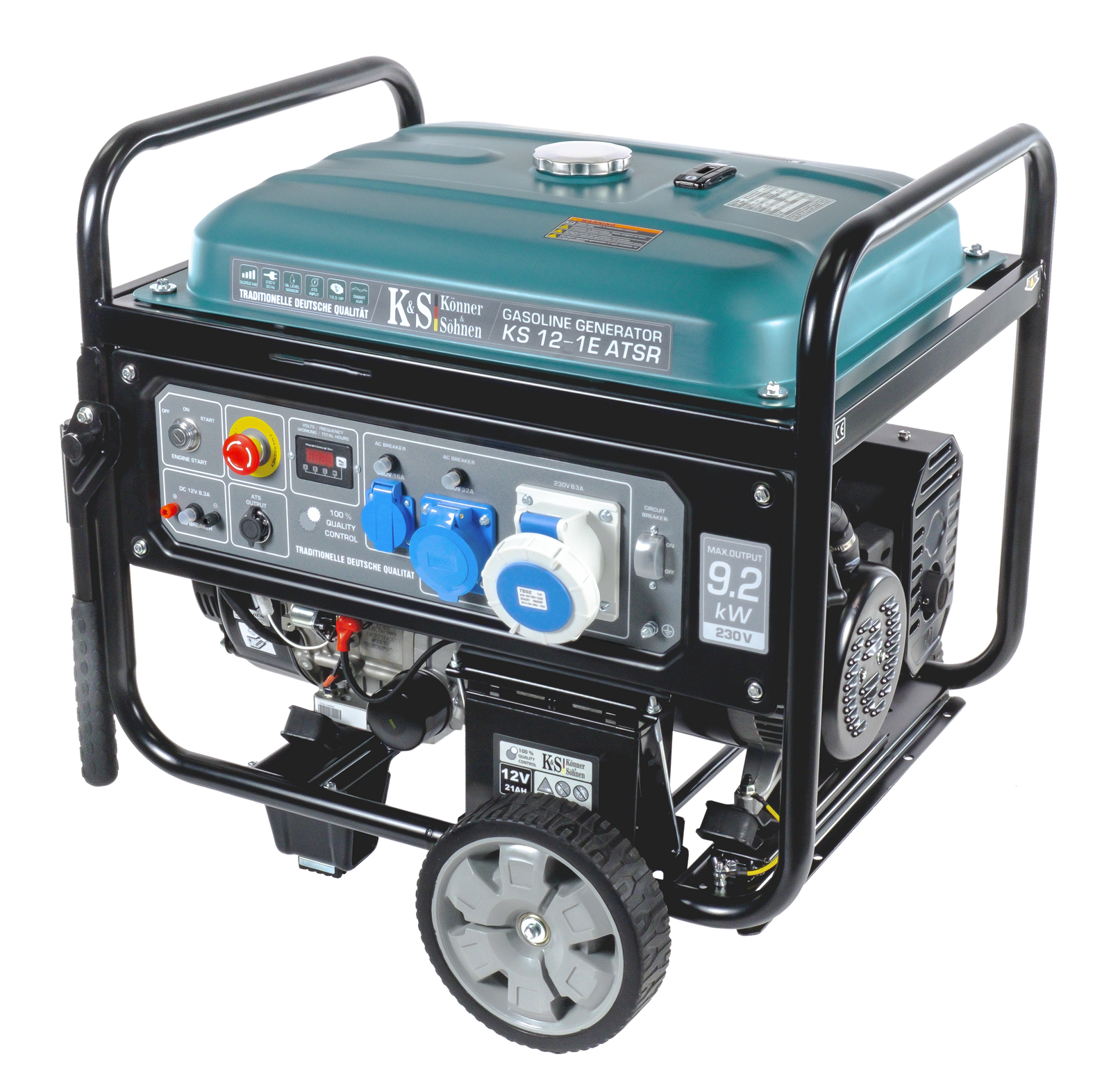

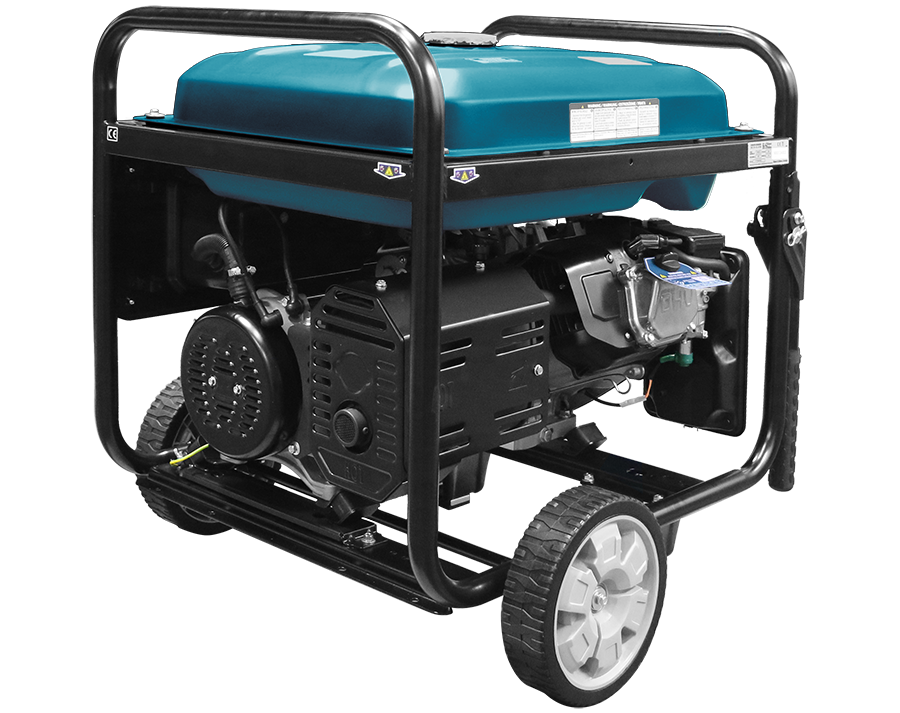

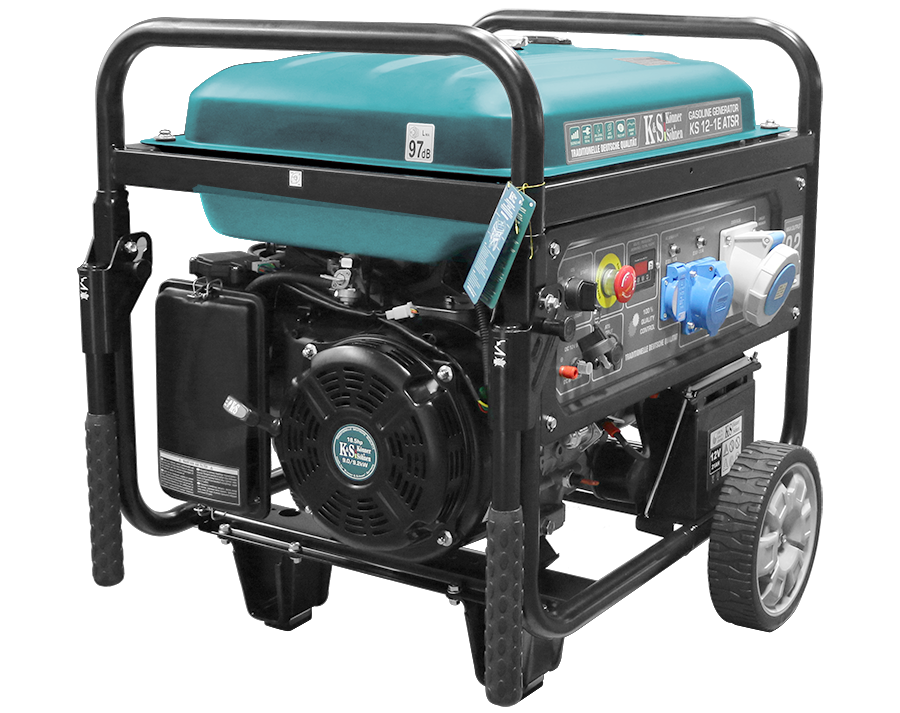

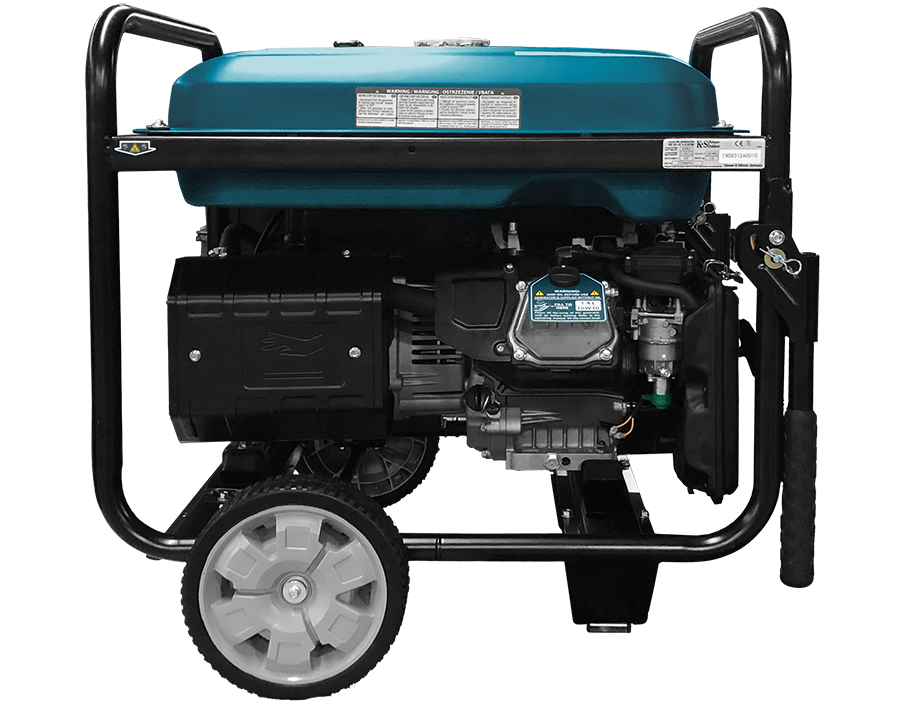

Gasoline generator "Könner & Söhnen" KS 12-1E ATSR

Gasoline generator "Könner & Söhnen" KS 12-1E ATSR

Name: Gasoline generator "Könner & Söhnen" KS 12-1E ATSR
Brand: Könner & Söhnen®
SKU: 4260405363414
Price: 82999.0 UAH
Availability: InStock

Available

₴82 999

Specification

Voltage, V:	230
Max power, kW:	9.2
Nominal power, kW:	9
Engine start:	Manual/electric
Outlets:	1 x Schuko 230 V, 1 x CEE 230 V 32 A, 1 x CEE 230 V 63 A

Specification

Voltage, V	230
Max power, kW	9.2
Nominal power, kW	9
Power factor, cosφ	1
Frequency, Hz	50**
Current (max), A	40
Outlets	1 x Schuko 230 V, 1 x CEE 230 V 32 A, 1 x CEE 230 V 63 A
Fuel tank volume, l	55
LED display	Voltage, frequency, working hours, oil alarm
Noise level Lpa (7m)/Lwa, dB	71/96
Power output DC, V/А	12/8.3
Engine model	KS 650
Engine type	Gasoline powered one-cylinder, four-stroke air-cooled
Engine power, hp/kW	18.5/13.6
Fuel type	Gasoline
Crank case volume, l	1.4
Engine cylinder volume, cm3	625
Power output controller	Intelligent voltage stabilization system AVR
Engine start	Manual/electric
Accumulator (A·h)	21
Alternator winding	Copper
Protection class	IP23M
Net dimensions (LxWxH), mm	790x705x680
Gross dimensions (LxWxH), mm	800x715x780
Net weight, kg	120
Gross weight, kg	136.0
SKU	KS 12-1E ATSR
Barcode	4260405363414

Variants

Max Power: 9.2 kW

3 kW 5.5 kW 8 kW 9.2 kW 12.5 kW

Benefits

A powerful single-cylinder four-stroke engine can provide power to a wide range of devices and equipment
The option to connect an ATS unit, which is especially convenient during power outages at night or in cold weather
Reduced overheating: copper dissipates heat better, helping to prevent generator overheating and extending its service life
Informative visualization: a multifunctional LED display ensures clear representation of important operating parameters
Portability: despite its significant power of 9 kW, the generator remains quite portable, easily movable thanks to handles and wheels

Delivery

Fast delivery by Nova Poshta: your order is already with you in 1-3 days!

Payment

Choose a convenient and reliable payment method:

Features

01 High-performance engine

02 Easy start system

03 Ergonomic control panel

04 Ats output

05 Alternator with 100% copper winding

06 Steel tank

High-performance engine

Powerful and reliable 1-cylinders air-cooled engine (18.5 HP), high-performance and costeffective, and conform to European quality standards (including exhaust emissions and noise). Each engine has a corporate K&S stamp and an individual serial number in order to ensure the quality control of manufacture and after-sales service.

Easy start system

Easy start system allows you to start the engine quickly and to do this without much effort. More powerful models are additionally equipped with an electric start system. Over Head Valve engine (ОНV) increases the lifespan of engine, reduces fuel consumption and noise level.

Ergonomic control panel

The user-friendly ergonomic control panel allows easy control of the whole device, requires no special skills, and is equipped with sockets designed for removal of full power delivered by the generator and modern LED- display (hour meter, frequency, voltage, oil alarm). PaneI is equipped with engine emergency switch.

Ats output

The ATS (Automatic Transfer Switch) unit automatically starts the generator and transfers load to it when the main power supply is disconnected and automatically stops the generator when the central power supply is restored.

Alternator with 100% copper winding

TM Könner & Söhnen generators are equipped with a high-end synchronous alternator with 100% copper winding. It is only the copper winding that can withstand maximum loads without any damage to ensure long-term reliable operation of the generator set.

Steel tank

“Könner & Söhnen” generators are equipped with an enlarged steel fuel tank (55 l), which extends the generator’s operating time without refueling. The fuel level indicator is located on the tank for ease of use.

Specification

Gasoline generator "Könner & Söhnen" KS 12-1E ATSR

Voltage, V	230
Max power, kW	9.2
Nominal power, kW	9
Power factor, cosφ	1
Frequency, Hz	50**
Current (max), A	40
Outlets	1 x Schuko 230 V, 1 x CEE 230 V 32 A, 1 x CEE 230 V 63 A
Fuel tank volume, l	55
LED display	Voltage, frequency, working hours, oil alarm
Noise level Lpa (7m)/Lwa, dB	71/96
Power output DC, V/А	12/8.3
Engine model	KS 650
Engine type	Gasoline powered one-cylinder, four-stroke air-cooled
Engine power, hp/kW	18.5/13.6
Fuel type	Gasoline
Crank case volume, l	1.4
Engine cylinder volume, cm3	625
Power output controller	Intelligent voltage stabilization system AVR
Engine start	Manual/electric
Accumulator (A·h)	21
Alternator winding	Copper
Protection class	IP23M
Net dimensions (LxWxH), mm	790x705x680
Gross dimensions (LxWxH), mm	800x715x780
Net weight, kg	120
Gross weight, kg	136.0
SKU	KS 12-1E ATSR
Barcode	4260405363414

Assembled in PRC.

**In transient modes, the frequency of the generator can change in the short term, that is, during normal operation of the generator, the deviation of the frequency indicator is permissible. Depending on the type of generator, engine and operating mode, the frequency can be 49-54Hz
