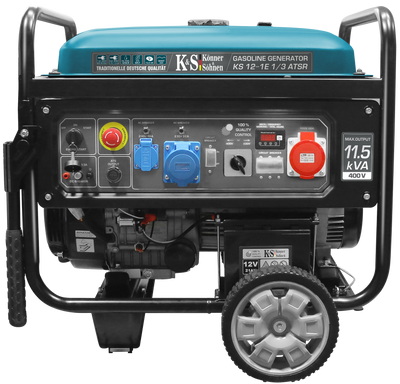

Gasoline generator "Könner & Söhnen" KS 12-1E 1/3 ATSR
₴90 999
Gasoline generator "Könner & Söhnen" KS 12-1E 1/3 ATSR
₴90 999
Gasoline generator "Könner & Söhnen" KS 12-1E 1/3 ATSR
Unavailable
₴90 999
Specification
| Voltage, V: | 230/400 |
| Max/Nominal power (230V), kW: | 8.2/8.0 |
| Max/Nominal power (400V), kVA: | 11.5/11.25 |
| Engine start: | Manual/electric |
| Outlets: | 1 x Schuko 230 V, 1 x CEE 230 V 32 A, 1 x CEE 400 V 32 A |
Specification
| Voltage, V | 230/400 |
| Max/Nominal power (230V), kW | 8.2/8.0 |
| Max/Nominal power (400V), kVA | 11.5/11.25 |
| Power factor, cosφ | 1 (230V)/0.8 (400V) |
| Frequency, Hz | 50** |
| Current (max.) 230/400 V, A | 35/17 |
| Outlets | 1 x Schuko 230 V, 1 x CEE 230 V 32 A, 1 x CEE 400 V 32 A |
| Fuel tank volume, l | 55 |
| LED display | Voltage, frequency, working hours, oil alarm |
| Noise level Lpa (7m)/Lwa, dB | 71/96 |
| Power output DC, V/А | 12/8.3 |
| Engine model | KS 650 |
| Engine type | Gasoline powered one-cylinder, four-stroke air-cooled |
| Engine power, hp/kW | 18.5/13.6 |
| Fuel type | Gasoline |
| Crank case volume, l | 1.4 |
| Engine cylinder volume, cm3 | 625 |
| Power output controller | Intelligent voltage stabilization system AVR |
| Engine start | Manual/electric |
| Accumulator (A·h) | 21 |
| Alternator winding | Copper |
| Protection class | IP23M |
| Net dimensions (LxWxH), mm | 790x705x680 |
| Gross dimensions (LxWxH), mm | 800x715x780 |
| Net weight, kg | 120 |
| Gross weight, kg | 170.0 |
| SKU | KS 12-1E 1/3 ATSR |
| Barcode | 4260405363421 |
Benefits
Delivery
- Fast delivery by Nova Poshta: your order is already with you in 1-3 days!
Delivery
Payment
- Choose a convenient and reliable payment method:
Payment
Features
01
High-performance engine
02
Easy start system
03
Vts system
04
Ergonomic control panel
05
Ats output
06
Alternator with 100% copper winding
07
Steel tank
High-performance engine
Powerful and reliable 1-cylinders air-cooled engine (18.5 HP), high-performance and costeffective, and conform to European quality standards (including exhaust emissions and noise). Each engine has a corporate K&S stamp and an individual serial number in order to ensure the quality control of manufacture and after-sales service.
Easy start system
Easy start system allows you to start the engine quickly and to do this without much effort. More powerful models are additionally equipped with an electric start system.
Vts system
The unique innovative VTS (Voltage Transfer Switch) phase switching system with equal power for single-phase (230V) and three-phase (400V) with almost no loss of power. Each mode has its own circuit breaker.

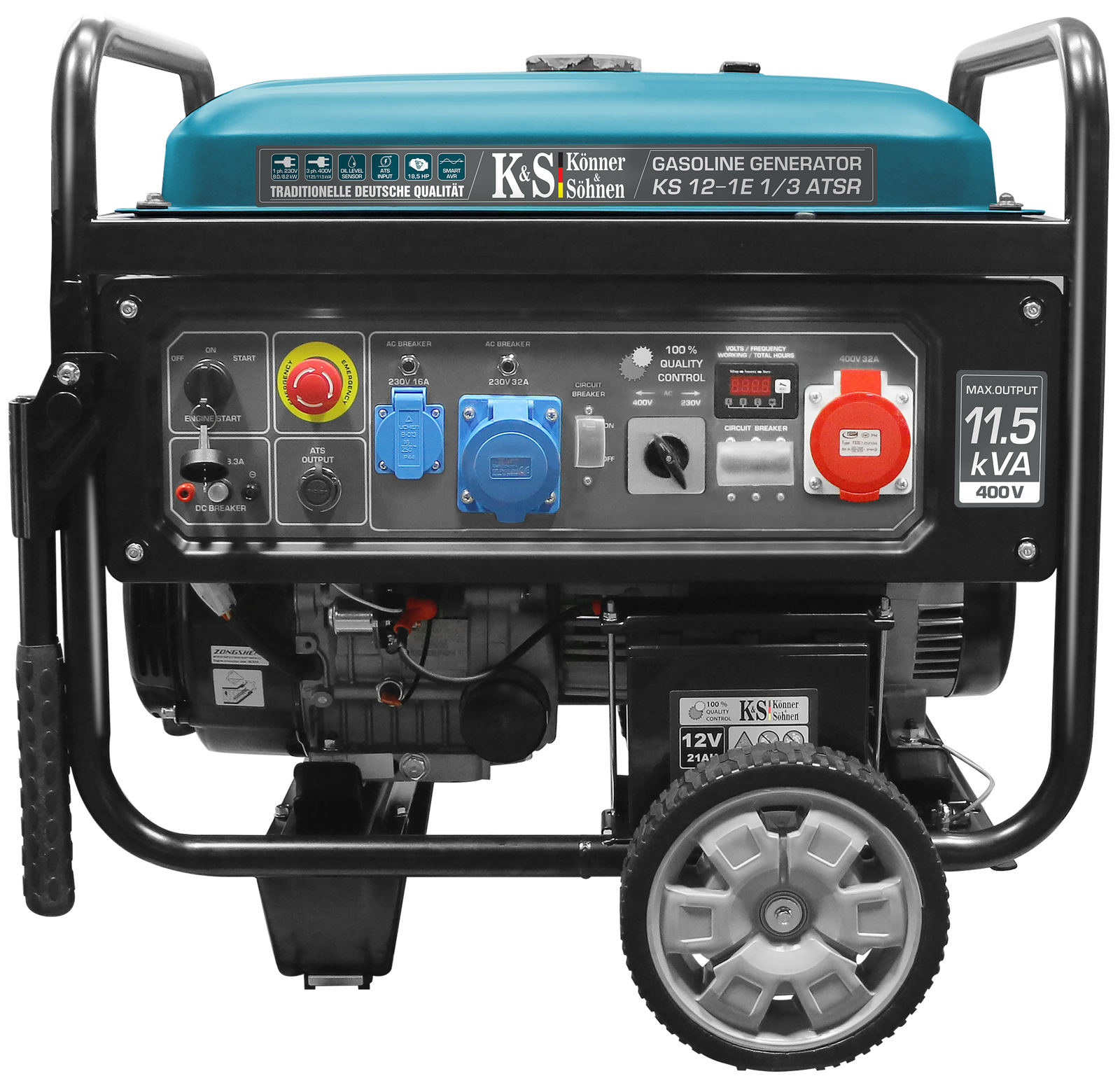

Ergonomic control panel
The user-friendly ergonomic control panel allows easy control of the whole device, requires no special skills, and is equipped with sockets designed for removal of full power delivered by the generator and modern LED- display (hour meter, frequency, voltage, oil alarm). Panel is equipped with engine emergency switc.
Ats output
The ATS (Automatic Transfer Switch) unit automatically starts the generator and transfers load to it when the main power supply is disconnected and automatically stops the generator when the central power supply is restored.
Alternator with 100% copper winding
TM Könner & Söhnen generators are equipped with a high-end synchronous alternator with 100% copper winding. It is only the copper winding that can withstand maximum loads without any damage to ensure long-term reliable operation of the generator set.
Steel tank
"Könner & Söhnen" generators are equipped with an enlarged steel fuel tank (55 l), which extends the generator’s operating time without refueling. The fuel level indicator is located on the tank for ease of use.
Specification
Gasoline generator "Könner & Söhnen" KS 12-1E 1/3 ATSR
| Voltage, V | 230/400 |
| Max/Nominal power (230V), kW | 8.2/8.0 |
| Max/Nominal power (400V), kVA | 11.5/11.25 |
| Power factor, cosφ | 1 (230V)/0.8 (400V) |
| Frequency, Hz | 50** |
| Current (max.) 230/400 V, A | 35/17 |
| Outlets | 1 x Schuko 230 V, 1 x CEE 230 V 32 A, 1 x CEE 400 V 32 A |
| Fuel tank volume, l | 55 |
| LED display | Voltage, frequency, working hours, oil alarm |
| Noise level Lpa (7m)/Lwa, dB | 71/96 |
| Power output DC, V/А | 12/8.3 |
| Engine model | KS 650 |
| Engine type | Gasoline powered one-cylinder, four-stroke air-cooled |
| Engine power, hp/kW | 18.5/13.6 |
| Fuel type | Gasoline |
| Crank case volume, l | 1.4 |
| Engine cylinder volume, cm3 | 625 |
| Power output controller | Intelligent voltage stabilization system AVR |
| Engine start | Manual/electric |
| Accumulator (A·h) | 21 |
| Alternator winding | Copper |
| Protection class | IP23M |
| Net dimensions (LxWxH), mm | 790x705x680 |
| Gross dimensions (LxWxH), mm | 800x715x780 |
| Net weight, kg | 120 |
| Gross weight, kg | 170.0 |
| SKU | KS 12-1E 1/3 ATSR |
| Barcode | 4260405363421 |
